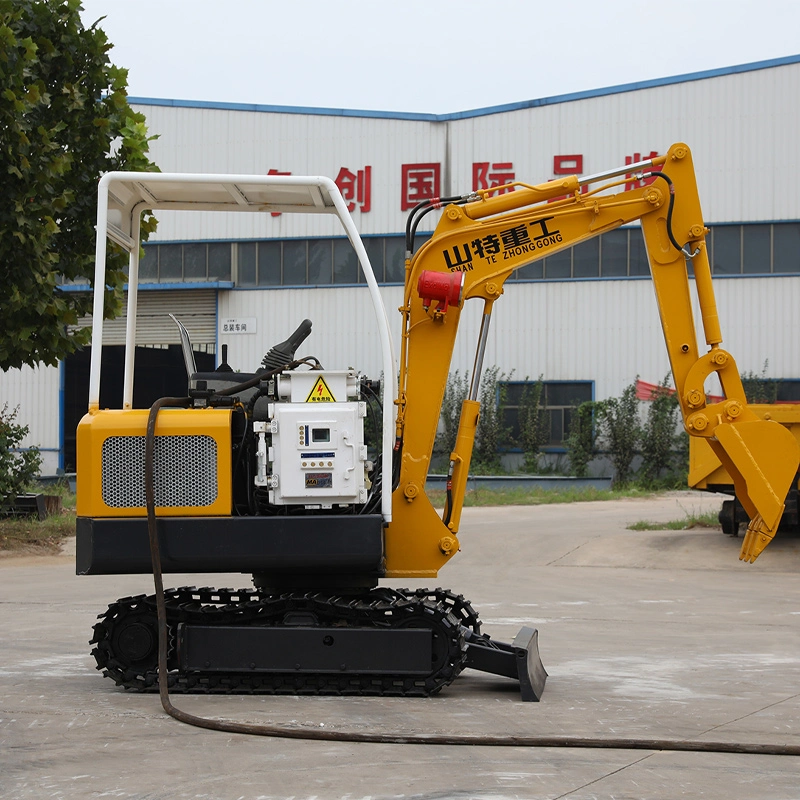

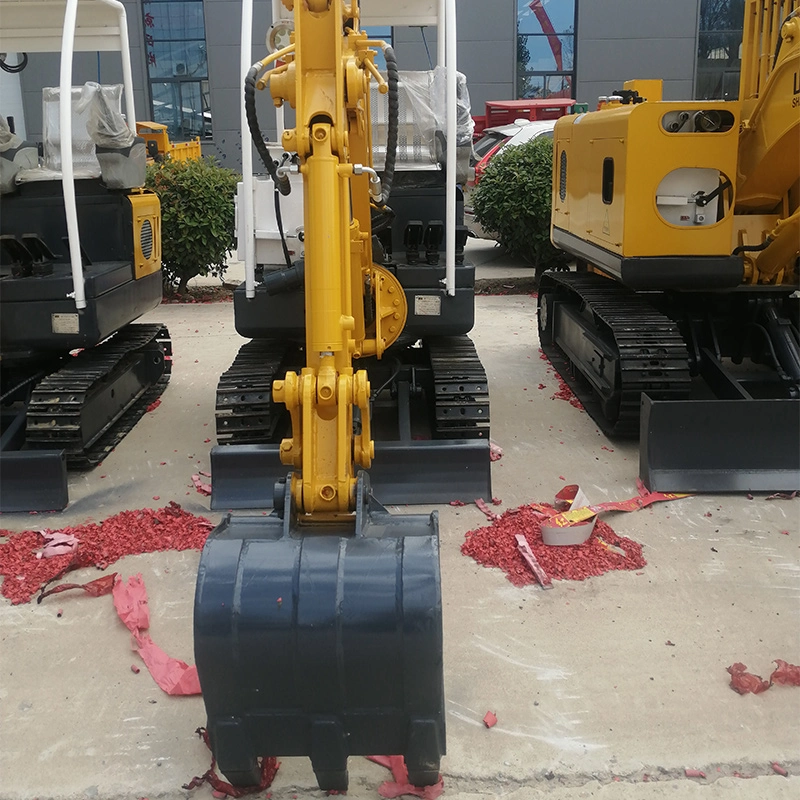

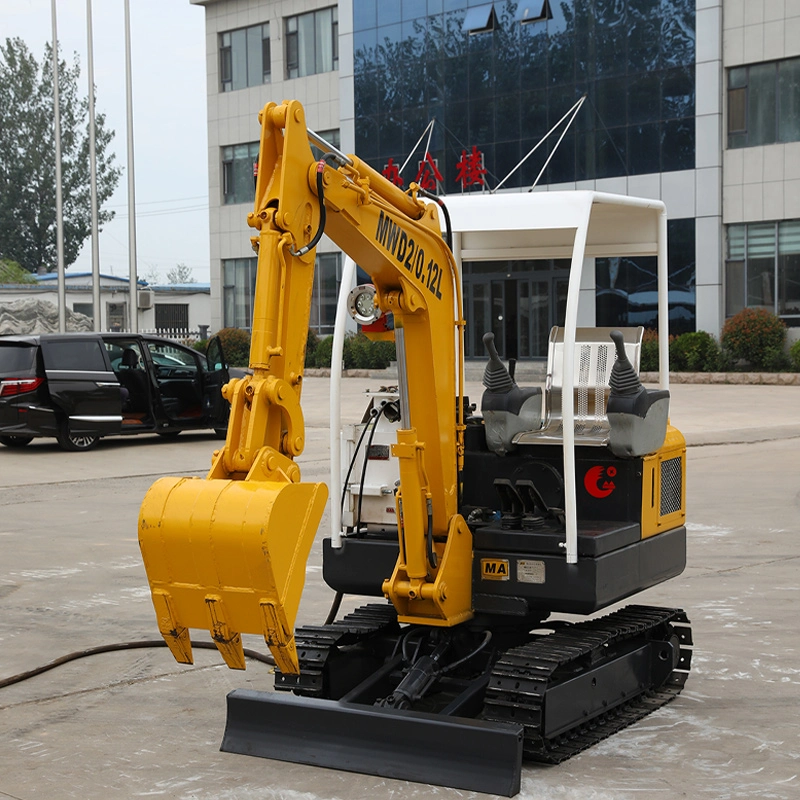

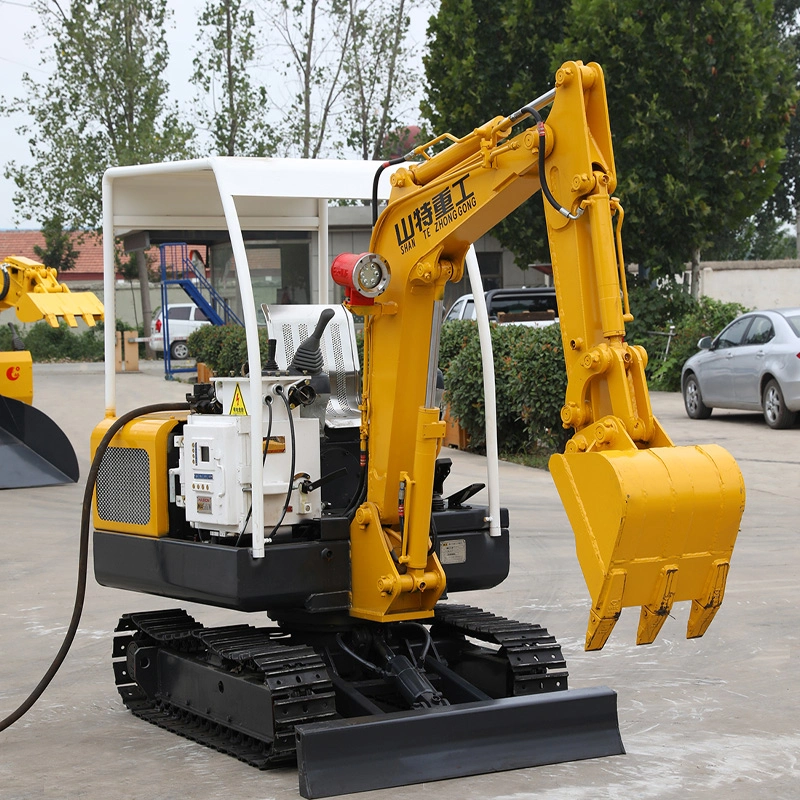

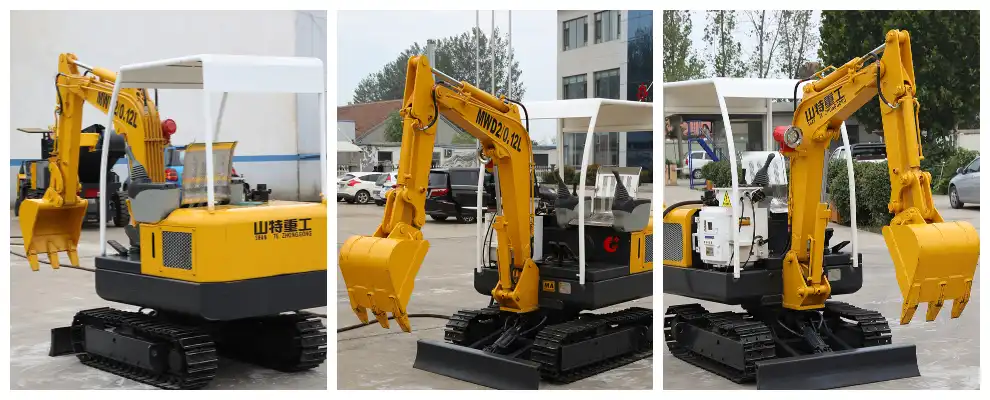

Product Introduction
It is mainly used for loading various rare mineral blocks in applications such as mine shafts, tunnels, hydropower projects, culverts, national defense projects, and ramps. The key components adopt products of internationally renowned brands, and the overall performance of the product reaches the advanced level of similar domestic equipment. This machine is designed to operate on steep roads with a slope of less than 30°.
It features a crawler-type walking mechanism, which can provide powerful driving force and a wide range of loads. It can load rocks across the entire cross-section without dead zones, eliminating the need for manual cleaning at the working face. Under harsh and severe conditions, its performance remains at its best.
This system integrates imported hydraulic pilot control rods with high-efficiency hydraulic valves, enhancing the movement speed of the robotic arm and the material transfer rate, and achieving outstanding compound operation efficiency.
It operates with minimal effort to ensure precise lifting/positioning and rapid material handling. It features compliance with environmental standards, high productivity, ultra-low energy consumption and other characteristics. It is ergonomically designed and suitable for complex working environments. The performance and structural design are ahead of comparable domestic products and imported substitutes of competitors.
Project |
"Unit | MWD2/0.12 liters | Molecular weight: 3.5/0.12L |
| Weight | T | 2.0±0.2 | 3.5±0.2 |
| Overall dimensions (length * width * height) | millimeter | 3500 * 1100 * 2550 | Telephone: 3800×1400×2350 |
| Bucket capacity | Cubic meters | 0.12±0.015 | 0.22±0.015 |
| Maximum excavation height | millimeter | ≥3000 | ≥3800 |
| Maximum mining depth | millimeter | ≥1750 | ≥ 1,500 yuan |
| Ground clearance | millimeter | ≥200 | ≥200 |
| Maximum emission height | millimeter | ≥2000 years | ≥ 2,600 yuan |
| Maximum vertical excavation depth | millimeter | ≥1100 | ≥1000 |
| Driving speed | Kilowatt-hour | 0.89 | 0.89 |
| Nominal work pressure | "MPa | 18/20 | 18/20 |
| Rotation Angle | ° | 360 | 360 |
| Motor power | Kilowatt | 18.5 | 30 |
| Maximum excavation radius | millimeter | ≥ 3,600 yuan | ≥3750 |
| Maximum digging force (bucket) | KN | ≥13 | ≥23 |
| Climbing ability | ° | ≤16 | ≤18 |
| Ground pressure | MPA | ≤0.08 | ≤0.08 |
| The minimum turning radius of the track | m | ≤1.7 | ≤1.6 |
